Page view 9
18 19

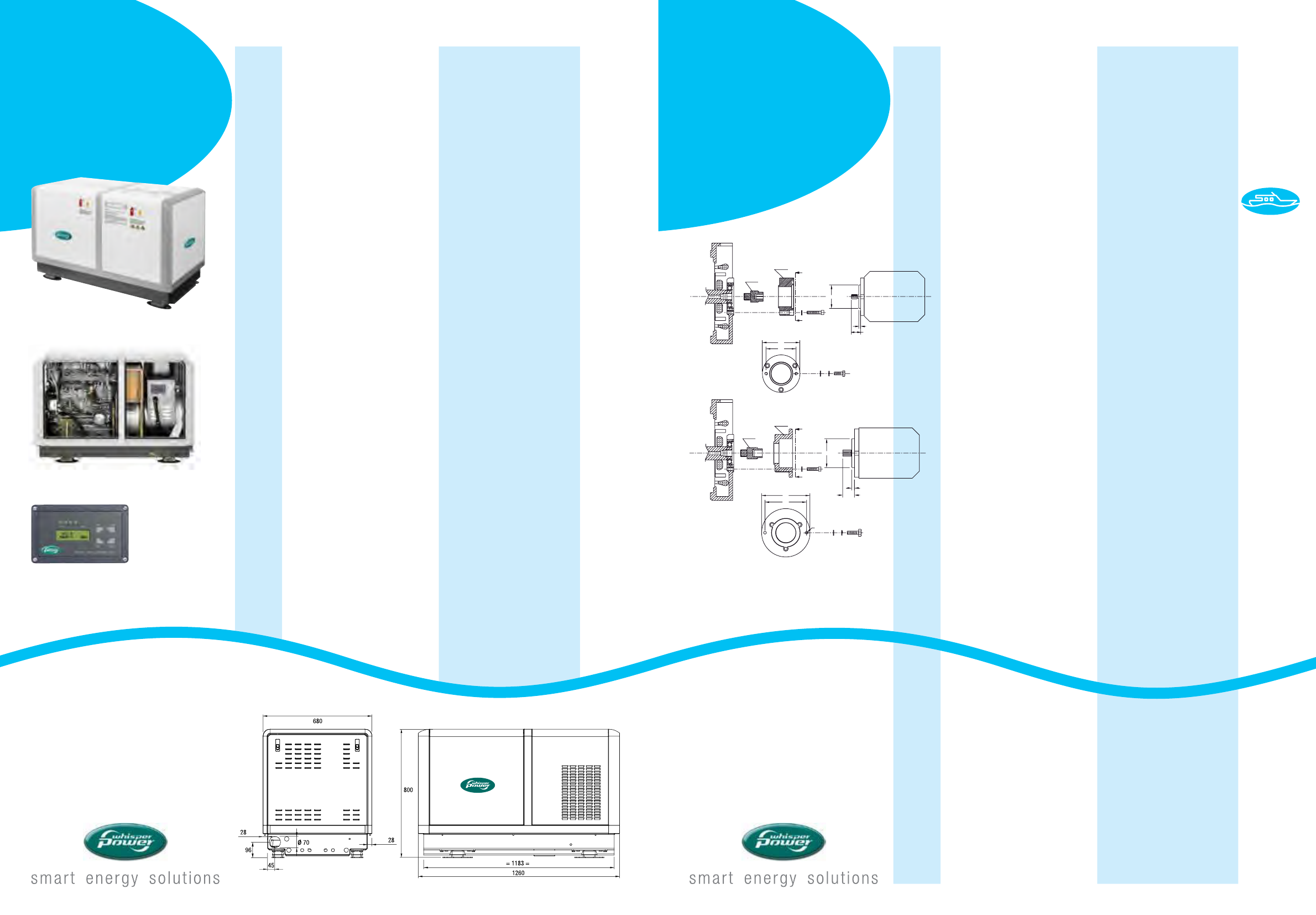

GENERATOR HOUSING
HYDRAULIC PUMP
SAE-A
2 HOLE MOUNTINGFLANGE
9 THEET 16/32 PITCH
VIEW A-A
ADAPTER
SPLINE
COUPLING
M 10 x 50
M 10 x 30
132
106
82.55
±8.05
31.8
6.1
A
A
GENERATOR HOUSING
HYDRAULIC PUMP
SAE-B
2 HOLE MOUNTINGFLANGE
13 THEET 16/32 PITCH
VIEW A-A
ADAPTER
SPLINE
COUPLING
M 10 x 40
M 12 x 30
170
146
101.6
±8.05
41.2
9.5
A
A
M 12
Art. no.
DDC control panel ‘Digital Diesel Control’,
supplied as standard with all sets
M-SQ 25
Diesel generator
1.500 RPM
Super Quiet series
41101005 M-SQ 25 230 V / 50 Hz MARINE
MAIN SPECIFICATIONS
Nominal power
2
) 25 kW at 1.500 RPM
Nominal voltage
3
) 230 V - 108 A
Output frequency 50 Hz
Power factor / cos phi 1
Voltage tolerance ± 2%
Frequency tolerance (Hz) ± 3%
Voltage regulation AVR
Starter battery 12 V
Battery charge current alternator 50 A
Alternator air-cooled, no brushes, synchronous
Sound level
4
) 58 dBA
SPECIFICATIONS DIESEL ENGINE
Engine model S4S
Number of cylinders 4
Cylinder capacity 3331 cc
Bore & stroke 4 x 94 x 120 mm
Air consumption 2.8 m
3
/min
Engine cooling indirect watercooling
Fuel consumption (no load - full load) 1-8 l/hour
REMOTE CONTROL FOR WHISPER GENERATOR
40209102 DDC panel: Digital Diesel Control, standard for every Whisper generator
40209102 Additional 2nd panel: DDC panel/slave version for second start/stop location
See page 69 for optional displays, controls and pc-link
ACCESSORIES & OPTIONS
41101006 M-SQ 25 230 V / 50 Hz MARINE ungrounded, wet exhaust
41101030 M-SQ 25 230 V / 50 Hz MARINE keelcooling, dry exhaust
41101305 M-SQ 25 230 V / 50 Hz MARINE wet exhaust, 3-phase
41101055 M-SQ 30 120/240 V / 60 Hz MARINE wet exhaust, dual voltage
41101355 M-SQ 30 120/240 V / 60 Hz MARINE wet exhaust, 3-phase
40230221 Water inlet kit 25 mm (1”) wet exhaust
40230274 Syphon breaker kit 25 mm (1”) wet exhaust
40230254 DELTA Exhaust kit 63 mm (2
1
/2”) wet exhaust
40230264 DELTA Water-gas separ. kit 63 mm (2
1
/2”) wet exhaust
40201894 Boxcooler kit keelcooling, dry exhaust
40201889 Dry exhaust kit 2” keelcooling, dry exhaust
2
) peak power 200%
3
) 120 V-240 V / 50 or 60 Hz available as well
4
) at 7 mtrs
DIMENSIONS & WEIGHT
Length: 1260 mm
Width: 680 mm
Height: 800 mm
Dry weight: 580 kg
Dry exhaust pipe: Ø 2 inch BSP
Wet exhaust: Ø 63 mm
Location oil refill cap: top
Max. operating angle: 25º in all directions
INSTALLATION
DRAWING M-SQ 25
Art. no.
M-SQ
Generator PTO
50201399 PTO kit SAE A 9-tooth M-SQ 8 / 10 / 12 / 16
50201398 PTO kit SAE B 13-tooth M-SQ 8 / 10 / 12 / 16
50201598 PTO kit SAE B 13-tooth M-SQ 20 / 25
WHISPERPOWER M-SQ GENERATOR
AS POWER SOURCE FOR HYDRAULICS: POWER TAKE OFF
Hydraulics are frequently used on boats, and with good reason: a pump system
with pressurised oil supplies a constant and immediately available mechanical
force for the bowthruster, stabilisers, auxiliary propeller or sail controls.
A WhisperPower generator (8-25 kVA models) can function as an exellent hydraulic
power source in this context. Using Power Take Off, you can easily adapt your
diesel engine for an additional task for example to power a hydraulic pump.
TWO TYPES: SAE A AND SAE B
Power Take Off is a stainless steel flange connected to the Whisper engine drive
shaft, to whitch the central hydraulic pump is fitted.
Two types are aveilable:
- for hydraulic pumps with 9-tooth SAE A connection
- for hydraulic pumps with 13-tooth SAE B connection
Hydraulic pumps are usually available from the supplier of the relevant hydraulic
system. Consult your WhisperPower agent for advice on this issue.
FOR M-SQ SERIES FROM 8 KW
Power Take Off requires more power, especially if your generator needs to power
the hydraulic system as well as the rest of your equipment.
It is therefore only available for the M-SQ 8 / 10 / 12 / 16 / 20 and 25 - 50 Hz
(M-SQ 7 / 9.5 / 11 / 15 / 20 and 30 - 60 Hz) models.
ELECTRICITY, HYDRAULIC PRESSURE OR BOTH
Using Power Take Off, the M-SQ can be set to three different functions:
- generating electric current
- powering the hydraulic system
- a combination of both
Simultaneous use of these functions depends on teh energy required by each:
naturally every generator model has a maximum capacity.
